The Kernel Trick

In this post, I will demonstrate an intuitive derivation of the kernelized form of L2-regularized least squares as an illustration of how the kernel trick can be useful.

Let’s begin by solving the basic L2-regularized least squares problem.

Solving the L2-regularized Least Squares Problem

The regularized least squares problem is:

$\underset{w \space \epsilon \space R_M}\text{Min} \space \frac{1}{2N} [ \Vert \Phi w - y \Vert^2 + \lambda \Vert w \Vert^2 ]$

Recall that $\Phi_{ij} = \phi_j (x_i)$, whereby our design matrix $\Phi$ has dimensions $N×M$ (this is an important detail).

This is also known as ridge regression.

Now, to derive the solution to the ridge regression empirical risk minimization:

$\begin{aligned} J(\hat{w}) &= (y - \Phi \hat{w}) (y - \Phi \hat{w}) + \lambda \hat{w}^T \hat{w} \\ &= y^Ty - 2 y^T \Phi \hat{w} + \hat{w}^T \Phi^T \Phi \hat{w} + \lambda \hat{w}^T \hat{w} \\ \frac{dJ(\hat{w})}{d\hat{w}} &= -2 y^T \Phi + 2 \Phi \Phi \hat{w} + 2 \lambda \hat{w} \\ &= 0 \\ \Phi^T \Phi \hat{w} + \lambda \hat{w} &= \Phi^T y \\ (\Phi^T \Phi + \lambda I_m)\hat{w} &= \Phi^T y \\ \end{aligned}$

$\boxed{\hat{w} = (\Phi^T \Phi + \lambda I_m)^{-1} \Phi^T y}$

Note that in the above solution for $\hat{w}$, the dataset $(x_i,y_i)_{i=N}$ is “memorized” by $\hat{w}$ and is not needed for new predictions.

Next, let’s see how rewriting the regularized least squares solution can produce a fascinatingly different result.

Reframing the regularized least squares solution

We will begin with the claim that:

$\hat{w} = (\Phi^T \Phi + \lambda I_m)^{-1} \Phi^T y = \fcolorbox{orange}{white}{$\Phi^T(\Phi \Phi^T + \lambda I_N)^{-1}y$}$

And here is the (informal?) proof:

$\begin{aligned} (\Phi^T \Phi + \lambda I_m) \overbrace{\Phi^T (\Phi \Phi^T + \lambda I_N)^{-1}y}^{\color{orange} \circledast} &= (\Phi^T \Phi \Phi^T + \lambda \Phi^T) (\Phi \Phi^T + \lambda I_N)^{-1} y \\ &= \Phi^T (\Phi \Phi^T + \lambda I_N)(\Phi \Phi^T + \lambda I_N)^{-1}y \\ &= \Phi^T y \\ \text{So, } \space \overbrace{\Phi^T (\Phi \Phi^T + \lambda I_N)^{-1}y}^{\color{orange} \circledast} &= (\Phi^T \Phi + \lambda I_m)^{-1} \Phi y \\ ~ \\ \text{Finally, } \space \hat{f}(x) &= \hat{w}^T \phi(x) \\ &= \phi(x)^T \hat{w} \\ &= \phi(x)^T \Phi^T(\Phi \Phi^T + \lambda I_N)^{-1} y \\ &= \displaystyle\sum_{i=1}^N \alpha_i \phi(x)^T \phi(x_i) \\ ~ \\ \text{Whereby } \space \alpha &= (\Phi \Phi^T + \lambda I_N)^{-1}y \\ &= (\underbrace{G}_{\text{Gram Matrix}} + \lambda I_N)^{-1} y \\ ~ \\ \text{And} \space G_{ij} &= \phi(x_i)^T \phi(x_j) \end{aligned}$

Let’s now summarize our findings for the reframed ridge regression solution:

$\fcolorbox{orange}{white}{$\hat{f}(x) = \displaystyle\sum_{i=1}^N \alpha_i \phi(x_i)^T \phi(x)$} \space \text{, where} \space \alpha = (G + \lambda I_N)^{-1}y$

We can make two key observations:

1. The input data {$x_i$} participates in predictions
2. For each new prediction, we have $O(N)$ operations

Now, to see how this reframing is useful, let’s make some comparisons with the original ridge regression solution.

Comparing two formulations of the solution

$\begin{array}{c:c} \text{Original Solution} & \text{Reformulated Solution} \\ ~ & ~ \\ \hat{f}(x) = \displaystyle\sum_{j=0}^{M-1} \hat{w}_j^T \phi_j(x) & \hat{f}(x) = \displaystyle\sum_{i=1}^{N} \alpha_i \phi(x_i)^T \phi(x) \\ ~ & ~ \\ \text{Where} \space \hat{w} = (\underbrace{\Phi^T \Phi}_{\text{M×M}} + \lambda I_m)^{-1} \Phi^T y & \text{Where} \space \alpha = (G + \lambda I_N)^{-1}y \space \text{ , } \space G = \underbrace{\phi(x_i)^T \phi(x_j)}_{\text{N×N}} \\ ~ & ~ \end{array}$

These two formulations are the exact same function, but we can make the following key comparisons:

1. The original solution has $O(M)$ operations, while the reformulated solution only has $O(N)$ operations. There are quite some cases where M » N for the N×M design matrix $\Phi$. Thus, the N×N gram matrix $\Phi \Phi^T$ is much more computationally feasible.
2. Most importantly, the reformulated solution only depends on feature maps {$\phi_j$} through dot product $\phi(x)^T \phi(x’)$

Next, let’s see how we can generalize this solution to kernel form

Generalizing to Kernel Form

$\text{So, we have our reformulated solution: } \\ \hat{f}(x) = \displaystyle\sum_{i=1}^{N} \alpha_i \phi(x_i)^T \phi(x) \\ \Downarrow \\ \text{Notice we have a similarity measure in the form of } \phi(x)^T \phi(x') \space \text{,} \\ \text{which involves computing the product of the two feature mappings} \\ \Downarrow \\ \text{What if we forget about the feature map } \phi \\ \text{and define a kernel } K(x,x') = \phi(x)^T\phi(x') ~ \\ \Downarrow \\ \text{Such that} \\ \fcolorbox{orange}{white}{$\hat{f}(x) = \displaystyle\sum_{i=1}^{N} \alpha_i K(x_i,x)$}, \\ ~ \\ \fcolorbox{orange}{white}{$\alpha = (G + \lambda I_N)^{-1} y, G_{ij} = K(x_i, x_j)$} \\ ~ \\$

Why is this useful? Given $K(x,x’) = \phi(x)^T\phi(x’)$, $K(x,x’)$ computes the same value as $\phi(x)^T\phi(x’)$, but does so without explicitly computing $\phi(x)$. In other words, the kernel encapsulates all the information about the feature space $\phi$ and inner product in it. We don’t need to explicitly map $x$ and $x’$ to the feature space via computing $\phi(x)$, then compute the inner product, because $K(x,x’)$ provides the result directly in terms of $x$ and $x’$ in the input space.

This might seem suspiciously convenient. Why are we able to swap $\phi(x)^T\phi(x’)$ for $K(x,x’)$? Well, Mercer’s Theorem states that if $K$ is a Symmetric Positive Definite kernel, there will exist a feature space $H$ and feature map $\phi$ such that $K(x,x’) = \phi(x)^T\phi(x’)$.

In other words, any kernel function that satisfies Mercer’s Theorem implicitly corresponds to a valid feature map $\phi(x)$.

In a sense, this is the core idea of the Kernel Trick.

Constructing a Kernel

There are a few ways to construct a kernel.

Firstly, you could construct a valid kernel by defining your basis function (feature mapping) explicitly, and then finding your kernel.

Next, you could directly define a kernel function as long as it is known to be valid. Some examples of SPD kernels include:

$\begin{aligned} ~ \\ \text{Linear Kernel: } k(x,x') &= x^Tx' \space \text{or} \space k(x,x') = 1+x^Tx' \\ ~ \\ \text{Polynomial Kernel: } k(x,x') &= (1+x^Tx')^m \space , \space m \space \epsilon \space Z_{+} \\ ~ \\ \text{Gaussian (RBF) Kernel: } \space k(x,x') &= \exp (\frac{- \Vert x-x' \Vert^2}{2s^2}) \space , \space s>0 \\ ~ \\ \end{aligned}$

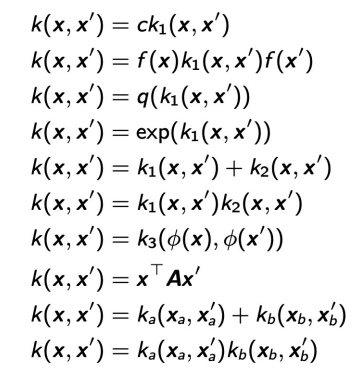

Finally, you could also construct kernels from simpler kernels, by using them as building blocks. For example:
